Description

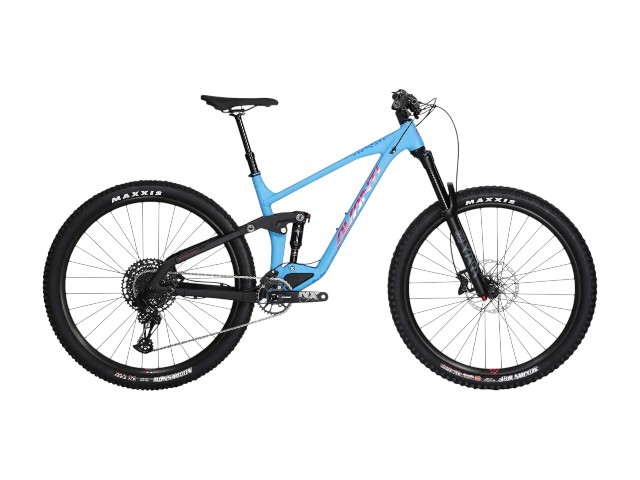

The Hammer LT range of 160/145mm trail bikes, are engineered in Germany to be light, but tough enough to
handle steeper and more aggressive terrain than our Hammer S line. Small frame size bikes features 27.5 wheels
for lower standover and all bikes in the range feature Rockshox front and rear suspension, long-travel Syncros
dropper posts, Shimano hydro brakes and SRAM’s excellent Eagle 12 speed drive trains. Added to that, LT’s
feature our ‘Stashbox’ in the frame which is fully equipped with all the quality Syncros mini tools you need out on
the trail.

Frame AL-6061 Ultralight Butted tubing, 145mm travel, cartridge bearing pivots, 1.5″ tapered headtube,
PF92 BB, 12 x 148m, stash box with tools

Fork Rockshox Yari RC Air, 160mm, air spring, 1.5″ taper, rebound adjust, lock-out, Boost 110 15mm
axle – S=27.5, M/L/XL=29er

Shock Rockshox Delux Select + Debon Air, rebound adjust,

Travel 160/145mm
Headset Integrated Threadless 1 1/8th – 1.5″ (with extra lower geometry adjust cup for 27.5+ )

Bottom Bracket SRAM DUB Pressfit

Handlebar yncros Hixon 2.0 31.8mm, with 12mm rise, 9 deg sweep

Stem Syncros FL 2.0 31.8, 6 deg rise

Shift Levers RAM NX Eagle, 12 speed

Brake Levers Shimano MT501hydraulic

Rear Derailleur SRAM NX Eagle

Crankset SRAM NX Eagle,DUB, 32T

Cassette SRAM PG-1210 Cassette, 11-50T, 12 speed

Chain SRAM NX Eagle

Brakes Shimano MT520 hydraulic, 203 front/180mm rear rotors

Rims Alex EXR 30 Double-wall Alloy with eyelet 32H, Tubeless Ready

Spokes Stainless steel

Tyres Fr: Maxxis Minion DHF 3CMaxxTerra/EXO 2.5″; Rr Maxxis Aggressor, 3CMaxxTerra/ EXO 2.3″
(2.5″ on S size). Foldable, Tubeless Ready, Other

Front Hub Alloy, 110x15mm 32H

Rear Hub Alloy 148x12mm, 32H

Saddle Syncros ER2.5

Seatpost Syncros Duncan Dropper 31.6mm with internal cable routing

Extras Stash Box’ in frame is fully equipped with Syncros trail tools, MINI chain guide
